在加拿大西部巨大的石油储量中，已经有智能人工举升系统的成功应用案例。 ARC Resources公司总部位于Calgary（Alberta），其资产遍布阿尔伯塔，对ARC Resources而言，人工举升不是一个新概念。该公司的小型井场（多达4口井）已经应用了控制系统，该系统支持利用人工举升系统在油井枯竭时优化开采。

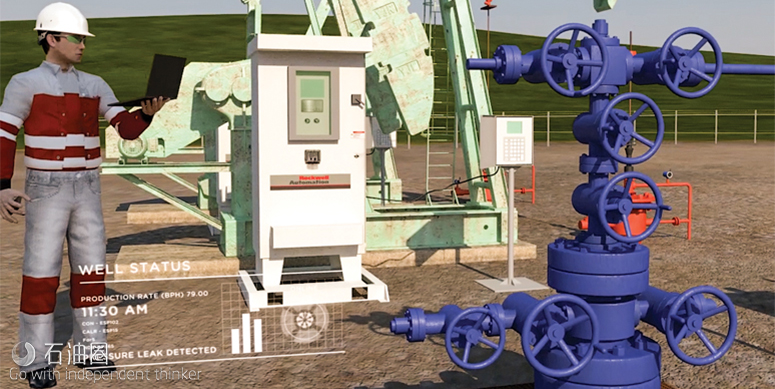

ARC Resources选择了Rockwell Automation的Connected Production油井管理解决方案来优化其大型井场。该解决方案包括Allen-Bradley ControlLogix可编程自动化控制器（PAC）和FactoryTalk View HMI，后者无需定制编码。PAC为井场提供了单一平台控制，借助多达32个人工举升井及情景化生产信息，可以协助作业商进行故障诊断并使油井保持最佳的生产水平，如下图。

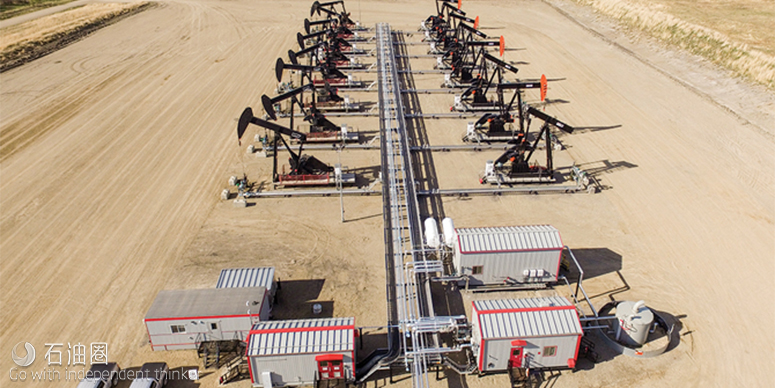

Connected Production解决方案在British Columbia一个有八口井的开采场开始实施试点项目，如下图。
ARC Resources的编程专家Charlie Kettner表示：“作业者可对ConnectedProduction解决方案中的事件进行追踪，了解自己处于优化周期的哪个阶段，（他们）也就能对下一步工作做出更好的决策。打个比方来说，作业者在看到定时井不再有产出后，可进行下一个步骤——将柱塞下放到井内。”
Intelligent artificial lift systems improve digital oilfield operations
As oil prices remain ‘lower for longer,’ intelligent systems help optimize production.
Oil and gas producers have been feeling the pressure in this down market to get the most from their existing assets and wellheads, as efficiently and cost-effectively as possible.
Fortunately, new technologies and capabilities that have been made available through digital oilfield innovation provide the means to effectively squeeze every bit of value from assets. A combination of low-cost sensors, intelligent assets and information tools allow oil and gas producers to gather more data, and have better control of their artificial lift systems.
These intelligent artificial lift systems can help producers realize three primary business benefits in their wellhead applications:
Better visibility into operations
Optimized production and asset performance
Reduced operating costs
BETTER OPERATIONAL VISIBILITY
Large, multinational oil and gas producers often use downhole sensor systems to monitor underground pressure and temperature. However, many mid- and small-sized producers don’t have the luxury of using these systems, which have high upfront costs and long-term maintenance requirements.
When downhole sensor systems aren’t an option, virtual flowmeters (VFM) provide an economical alternative for understanding underground conditions. VFMs calculate the three-phase flow of water, oil and gas at the wellhead, and provide well analysis for performance improvement. They can calculate the data at either the wellhead site or at the control-system level.
VFMs do require some upfront calibration, but they’re also a fraction of the cost of downhole sensors, and can produce data of similar accuracy. In fact, one lab test that Rockwell Automation conducted for a major oil producer found the VFMs delivered more than 90% data accuracy compared to actual well-test data.
Another attractive aspect of VFMs is scalability. This means that the flowmeters can be deployed across multiple lift methods—from highly-productive multi-well pads, to low-producing wells.
For all of the value that VFMs offer, in truth, they are only valuable if an operator can put the data that is produced to good use. Once an oil and gas producer collects VFM data, they must be able to analyze it, and act on it, to improve operations.

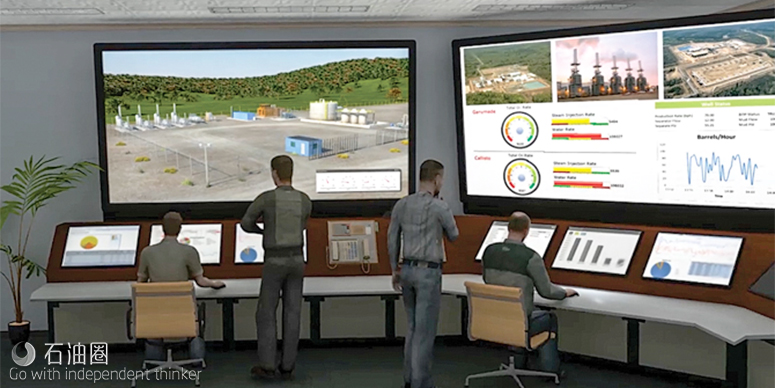

Some oil and gas producers choose to hire contractors or outside service providers for data collection and data analysis activities. However, many producers prefer to manage data in-house, using business intelligence and analytics software, Fig. 1.
Business intelligence software integrates data not only from VFMs, but also from all other inputs across an oil field. This creates a single information management and decision support system that can aid all aspects of production. Analytics software provides the means to turn raw data that has been collected into production intelligence.
With these software tools in place, oil and gas producers can tap into the power of their data to optimize their operations. For example VFM data can:
Provide insights into underground conditions, which can be used to drive decisions about reducing bottom-hole pressure or keeping it constant.
Be compared against well-test data. This can help verify well-test data, as well as validate planning and production allocation. What’s more, users can improve utilization of test separators by refining and prioritizing test schedules for each well.
Identify underperforming wells. Once such wells are identified, operators can then quickly take any necessary corrective actions to limit production interruptions and deferments, and ultimately stay on track with their production targets.
Collect information on system components from different vendors over time. This data can be used to better predict when components, such as a rod, might break. Also, it can improve equipment and supply logistics for maintenance, helping companies be more proactive in getting ahead of downtime issues.
REDUCED OPERATING COSTS
Intelligent artificial lift systems can help bring down production costs in multiple ways. For example, energy consumption is often overlooked in oil and gas production, which is surprising, given that it’s a significant operational expense.
Advanced artificial lifts primarily run on electricity, and intelligent systems can collect and analyze data on energy usage to help companies monitor their consumption. The artificial lifts also can be equipped with drives that can regenerate power and put power back on the grid, or they can use solar power to reduce electrical usage.
Variable speed control also provides another opportunity for cost savings. Traditional lift systems have no speed control. As a result, companies either run the systems until they break, or they turn the systems off, which can result in sand settling into the bottom-hole equipment and clogging it. Either way, oil and gas producers ultimately end up paying for these approaches in the form of costly repairs and unexpected production downtime. Modern artificial lift systems, however, can use variable speed control to help prevent plugging and maximize production efficiency.
Finally, intelligent artificial lift systems deliver improved insights into operations, which can help companies better manage their capital expenditures. For example, a company considering a well workover can use well data to determine if the potential future yield of a reservoir justifies use of alternative methods to enhance recovery.
TECHNOLOGY IN ACTION: ARC RESOURCES
One example of a successful intelligent artificial lift system application can be found in the vast oil reserves of western Canada. This is the region that ARC Resources calls home. The company is based in Calgary, Alta., and has assets located across Alberta and British Columbia for the exploration, development and production of conventional oil and natural gas.
In the Montney region of northeastern British Columbia, ARC Resources’ goal was to optimize the control systems for its large, multi-well natural gas production sites. The sites would soon need artificial lift to maintain production levels, but the control systems in place didn’t support the technology. Additionally, ARC Resources wanted to address the expansion and safety challenges that the existing systems presented.
SCALING UP ARTIFICIAL LIFT
Artificial lift was, by no means, a new concept for ARC Resources. The company’s smaller pads, of up to four wells, already used control systems that supported the use of artificial lift systems for optimizing production as wells depleted.
However, control systems used on the company’s pads of five or more wells didn’t support artificial lift. The control approach used on these larger pads consisted of multiple controllers that were hardwired together and used in conjunction with remote terminal units (RTUs) to handle the large amount of I/O required to run the entire well pad.
This rendered the control infrastructure more complex and more mistake prone, and limited the amount of information available for control and monitoring. It also created safety challenges. ARC Resources uses its control architecture to monitor toxic and explosive gases, and to carry out actions such as blocking wells or turning on exhaust fans based on conditions. However, the hardwired controllers could lock up and freeze their outputs, while giving no indication that there was a fault. As a result, the company had to incorporate “watch dog” timer hardware to monitor for these conditions.
ARC Resources chose the ConnectedProduction well manager solution from Rockwell Automation to optimize its larger well pads. The solution includes an Allen-Bradley ControlLogix programmable automation controller (PAC) and FactoryTalk View HMI, which requires no custom coding. The PAC provides single-platform control for sites, with as many as 32 artificial lift wells, and contextualized production information to help operators troubleshoot issues and maintain optimal production levels, Fig. 2.
TRIAL RUN IN BRITISH COLUMBIA

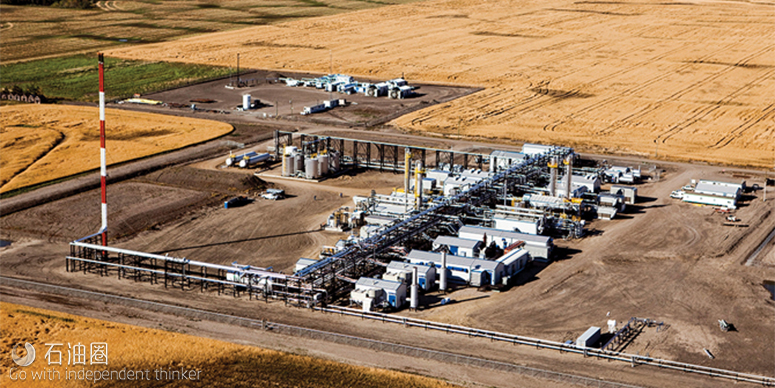

The ConnectedProduction solution implementation began with a pilot project at an eight-well production site in British Columbia, Fig. 3.
An early benefit discovered during installation was the solution’s add-on instructions, which helped the team save about two days of programming time. Additionally, integration with other vendor hardware at the site was easy, because the solution uses an open architecture.
Upon its implementation at the eight-well site, the system eliminated the need for multiple controllers and RTUs at the site. Instead, all well pad controls have been consolidated into a single control platform, Fig. 4. This not only simplified the control architecture, but also helped reduce the site’s hardware and software costs.
Additional cost savings were realized from the system because it can support a flow-measurement card within the control panel. This has allowed the site to eliminate its use of a separate flow-measurement computer and save tens of thousands of dollars as a result. The solution also allows the site to use artificial-lift systems, including on/off timers and plunger-lift systems, while also providing visibility into those systems.
“Operators can track events in the ConnectedProduction solution to see what stage we’re in, of the optimization cycle and (they can) make better decisions about what to do next,” said Charlie Kettner, programming specialist for ARC Resources. “Operators can see, for example, that a timer well is not producing anymore, and move to the next step of putting a plunger in the hole.”
The system also is helping ARC Resources enhance safety at the site by reducing the risk of faults going undetected. If something goes wrong with the processor or if an I/O rack comes undone, for example, the control platform can fault to a safe state and shut down all processes.
Following the successes seen in the pilot project, ARC Resources is planning to extend the ConnectedProduction system to at least four more large multi-well pads that need assisted lift.
Monitoring downhole conditions and equipment performance in artificial lift systems is no longer a cost-prohibitive effort. The digital oilfield is bringing these insights to more oil and gas producers at a low cost with smart and connected artificial lift systems that can help monitor wellhead applications, optimize production, reduce equipment issues and bring down production costs.
