The Quest™ GWD system

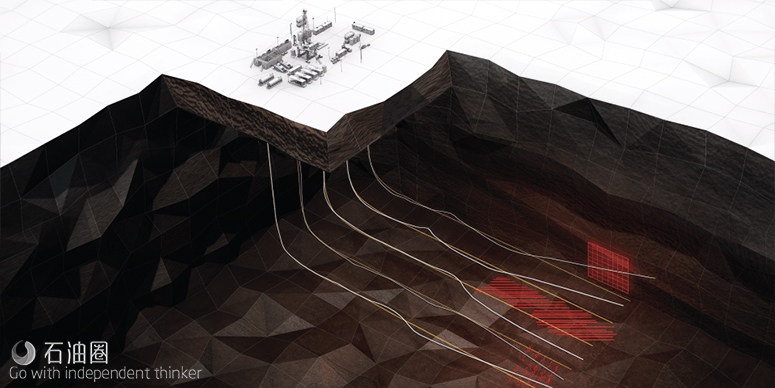

To respond to the industry’s demand for more accurate wellbore placement, Gyrodata launched a new gyro-while-drilling (GWD) tool, QuestTM GWD. This ground-breaking technology enables operators to mitigate the costly risk of a collision throughout complex drilling projects. This is achieved by delivering high-quality, accurate measurements that help operators avoid drilling into existing adjacent wells. The QuestTM GWD tool also substantially reduces the ellipses of uncertainty in real-time, which improves wellbore placement as a result of greater precision and accuracy. This improved performance helps operators avoid lease lines, mitigates frac hits, and enhances ability to hit hydrocarbon-rich target zones.
Additionally, the solid-state sensor package is not affected by shock and vibration or magnetic interference. The Quest™ GWD system is the second release that utilizes Gyrodata’s innovative SPEARTM solid-state technology. As a result, drillers can steer around existing steel casing and magnetic anomalies safely. The GWD tool also provides transparent, real-time quality control and gross error detection. With its impressive speed, the GWD tool reduces gyro surveying times considerably. These factors help operators achieve survey-reliability goals cost-effectively.
Quest GWD reduces the ellipse of uncertainty by 41% compared to competing MEMS GWD systems, while being two times faster to perform surveys.
MARKET + APPLICATIONS
1.Vertical, Directional & Horizontal Drilling
2.Ellipse of Uncertainty Reduction
3.Multi-Well Pad Drilling
4.Offshore & Riserless Drilling
5.Onshore Drilling
6.Batch Well Drilling
7.High Latitude Drilling
8.Definitive Wellbore Placement
9.Areas of Magnetic Interference
10.Gross Error Detection
11.Collision Avoidance
12.Side-Tracking
13.Relief/Intervention Well
14.IFR & MWD Validation

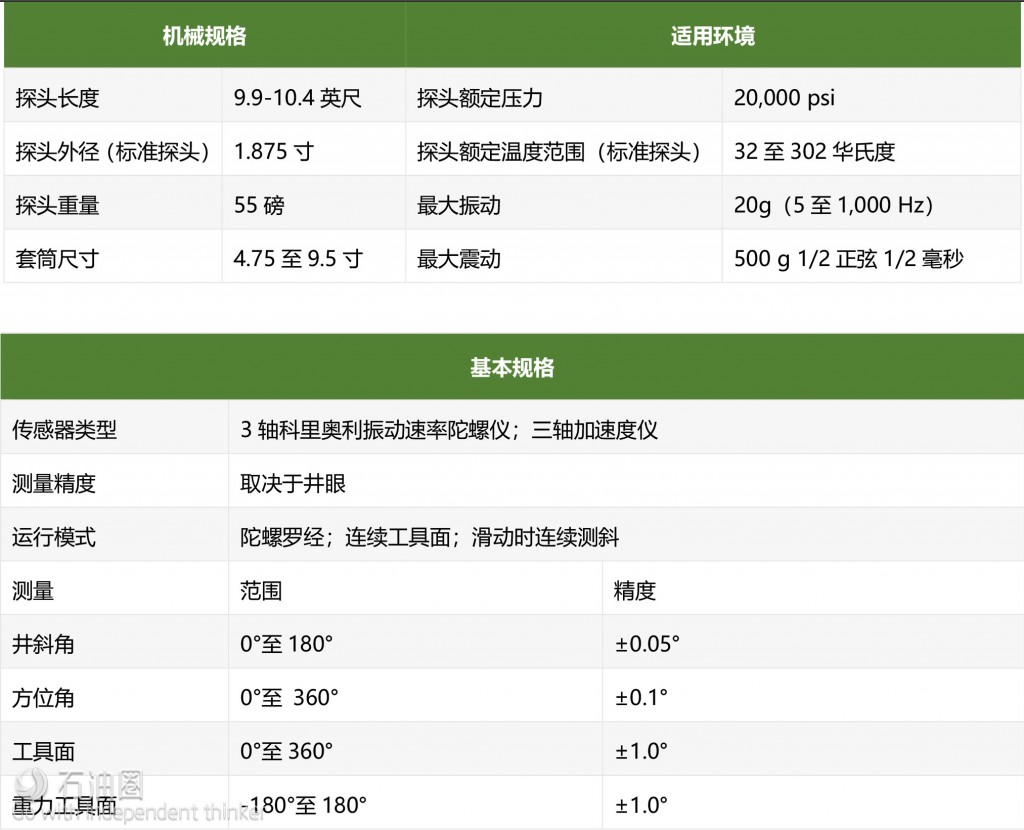

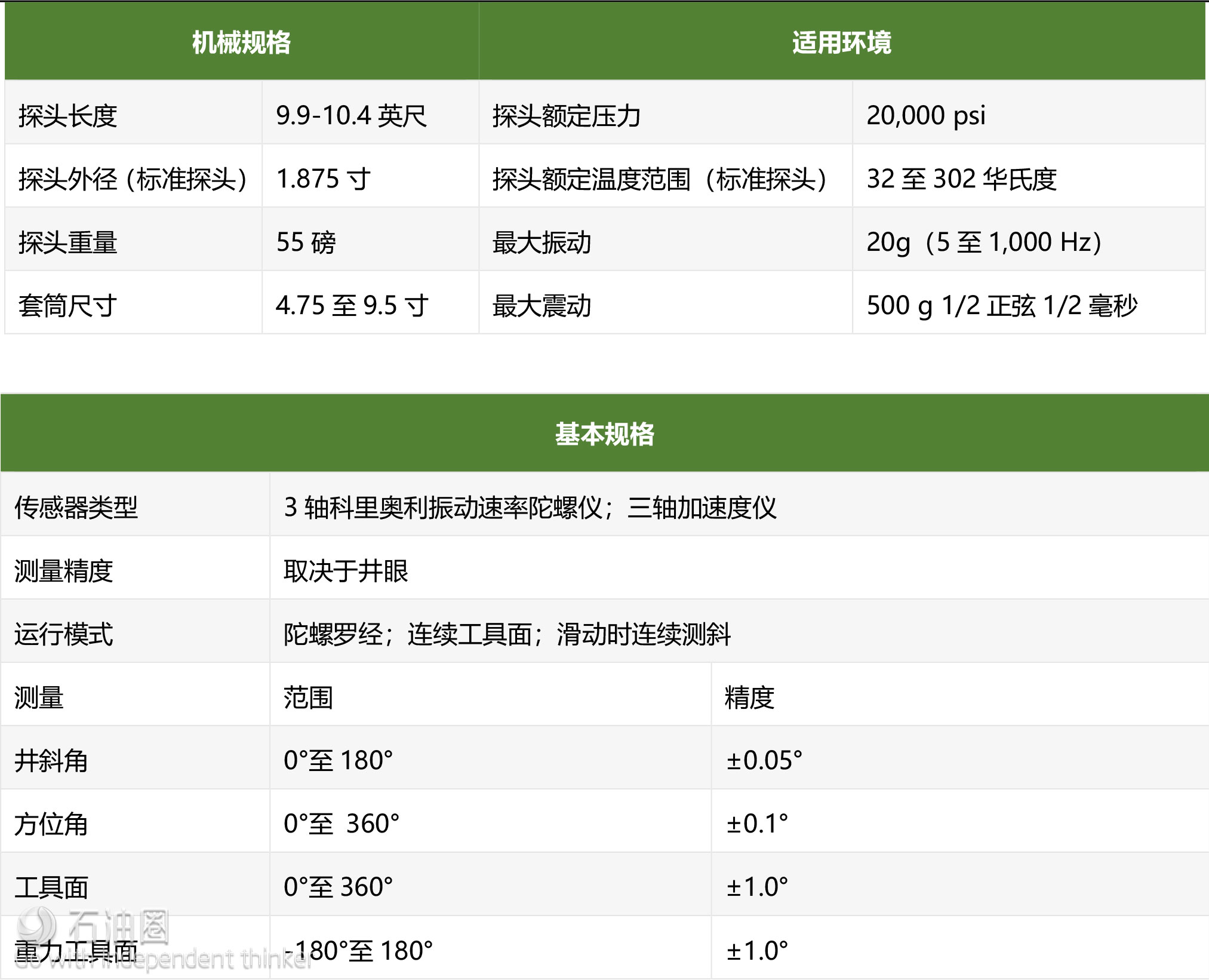

Quest GWD MODULAR
All-Attitude, High-Accuracy, Solid-State Gyro While Drilling. Gyrodata’s gyro while drilling service, QuestTM GWD provides all-attitude, high-accuracy, high-performance coriolis vibratory rate-gyroscopic surveys in real-time as drilling progresses. This modular gyro while drilling tool is combined with a host measurement while drilling (MWD) & telemetry system, and provides rate-gyroscopic steering and survey data in vertical to horizontal applications.

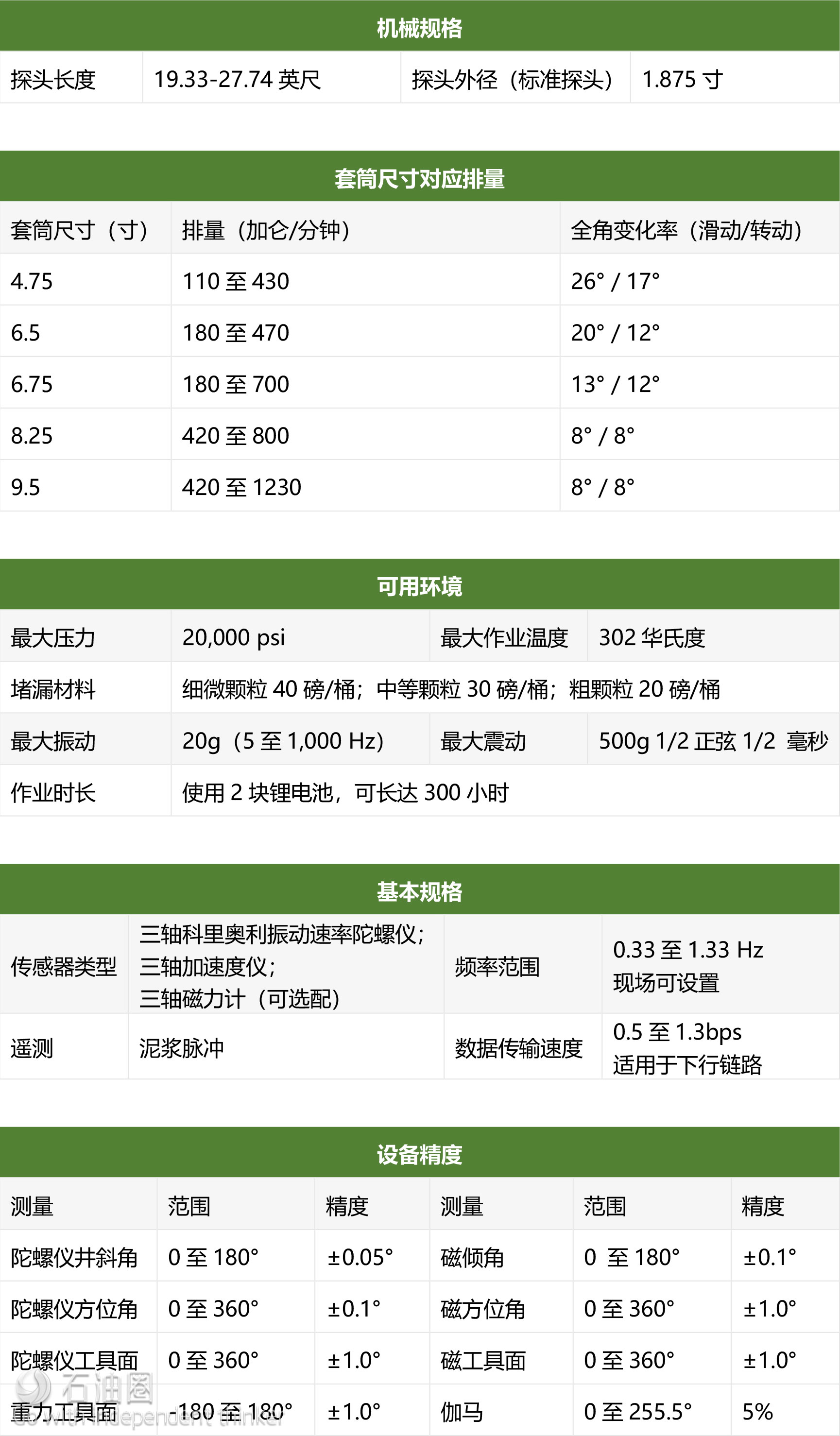

Quest GWD Retrievable Mud Pulser
Quest GWD includes Gyrodata’s retrievable pulser technology, and provides steering and survey data in vertical to horizontal applications.

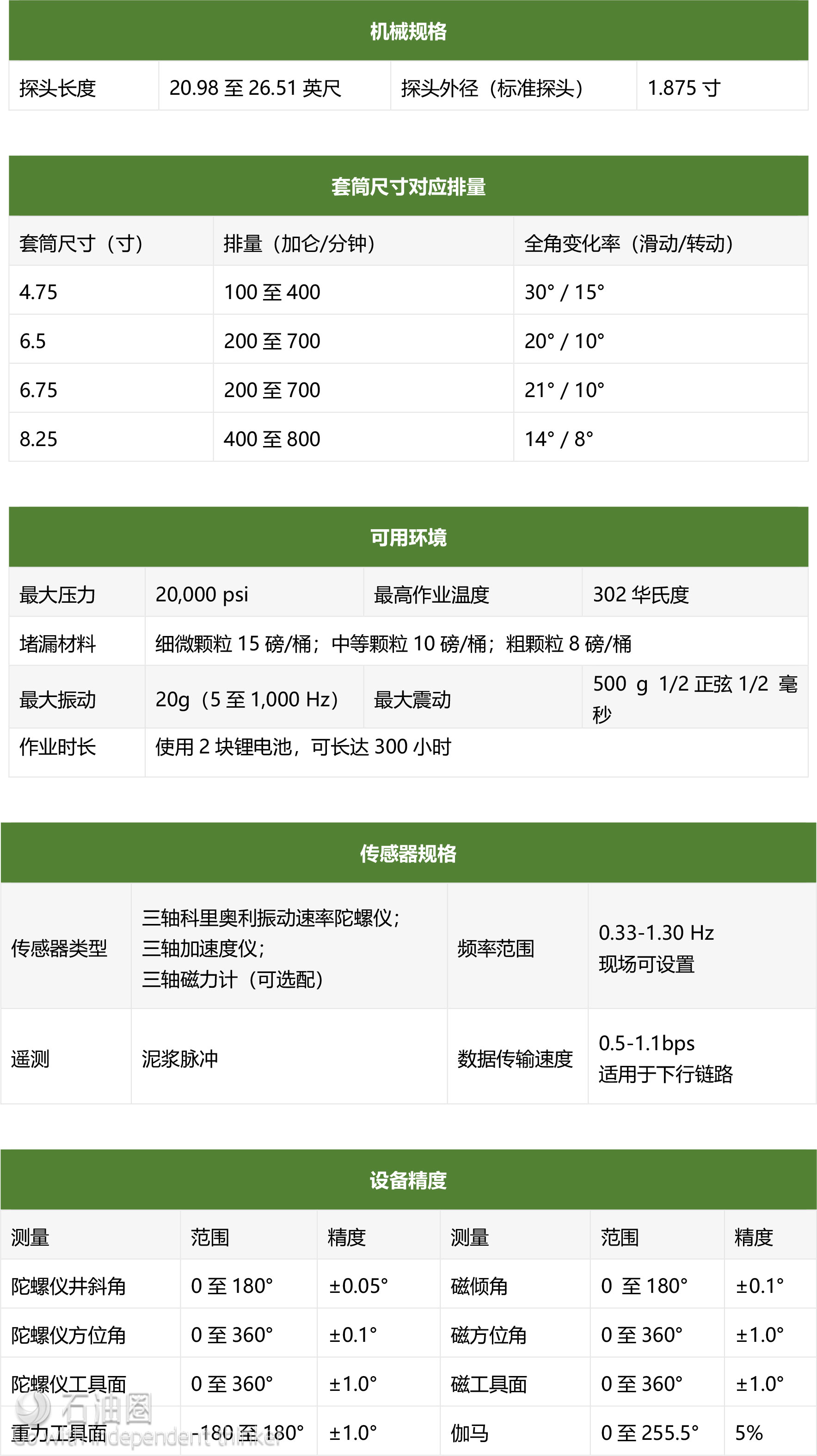

Quest GWD Top Mount Mud Pulser
Quest GWD includes Gyrodata’s top mount pulser technology, and provides steering and survey data in vertical to horizontal applications.
