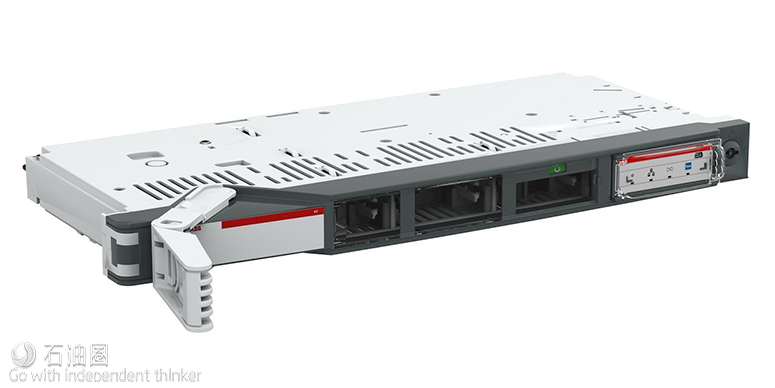

ABB has upgraded its market-leading range of Slimline XR low-voltage switch fuse disconnectors, reducing power losses by up to 35% and increasing potential space savings. A host of technical advances and design improvements make the Slimline XR range smart, with higher-performance and suitability for even more demanding applications.
The Slimline XR can now also access a range of useful remote supervision and operation functions. Thanks to the integration of the intelligent Tier Switch ITS 2.1, the device connects easily to the ABB AbilityTM cloud platform. If fuses blow or temperatures or currents exceed set limits, alerts are sent to key personnel, making it easier to maintain continuous operations.
Giampiero Frisio, head of ABB’s Smart Power business line said, “The upgrades to the new improved Slimline XR Gold shows why ABB is the pioneering technology leader in this market. Our commitment to innovation, good design and our attention to detail continue to deliver advances that make life easier for customers and that adds value to their operations. The improvements to the range will support the growth in energy management systems for more demanding applications.”
The higher efficiency was measured in tests that established the new Slimline XR low-voltage switch fuse disconnectors meet the latest edition of the IEC60947-3 standard. A 35.5% reduction in in power losses from 357W to 230W was recorded. This efficiency gain means lower heat losses, which translates into space savings for customers as more Slimline XR devices can now be installed in a single column.
The Slimline XR is among the smallest switch disconnector fuses with the lowest power losses available. It is one of the few horizontal switch disconnector fuses with the AC23A rating and is the only device where all active parts are silver-plated, with no bare copper. The greater durability means the Slimline XR now has a longer working life and is suitable for more extreme conditions: the number of operations has increased by 400% from 1,600 to 8,000 operations and the short circuit making capacity has increased by 118% from 55kA to 120kA.
Pietro Esposto, Global Product Group Manager for ABB’s Switches & Fusegear business said, “The higher short circuit capacity provides higher levels of safety and protection, making the Slimline XR suitable for more demanding applications. A new electronic fuse monitoring function, suitable for 800V AC applications, further improves reliability in extreme conditions.”
ABB’s SlimLine XR range of switch disconnector fuses allow more outgoing feeders per switchboard, saving cubicle and floor space – and costs. The SlimLine XR range can be used in 2-, 3- and 4-pole networks, with either DIN NH or BS fuses. Plug-in contacts make it fast, easy and safe to install, even under live voltage.
Longer Lifetime
The utilization category changed from AC23B to AC23A with a number of operations increased by 400% from 1600 up to 8000. More operations mean longer life time and make the product suitable for more demanding applications.
Safety and protection
The short-circuit making increased by 118%, from 55kA up to 120 kA. Higher short-circuits capacities raise the protection features of SlimLine XR Gold and grant a higher level of safety of the system; an important advantage in any kind of application.
Reliable in extreme conditions
A new Electronic Fuse Monitoring (EFM) suitable for 800V AC applications, follows the most recent market trends allowing the use of SlimLine XR Gold in more demanding applications.
Remote communication
Supervision and remote communication through the intelligent Tier Switch ITS 2.1 and ABB AbilityTM digital technology, allows alerts if fuses blow or temperature or currents exceed the set limits. Continuous operation and optimum interface to go digital!
Speed up your projects
Finally, thanks to the unique contact design and compact size, the Slimline XR Gold installation is safer, faster and easier. Furthermore, the installation of current transformers, ammeter and auxiliary contacts is faster and there is a saving up to 20% of the installation time.
