high-tier directional drilling services
Rotary steerable systems (RSS) help you overcome technical and economic challenges of the land market by producing high-quality boreholes. To better assist you in providing top-tier directional services, we are excited expand our RSS product line with the addition of the VectorZIEL™ and VectorEXAKT™ RSS.
The VectorZIEL and VectorEXAKT RSS platform was initially developed more than 30 years ago and used for precision drilling of deep vertical mine shafts and has since been adapted for use in oil and gas applications.Since their release, they have provided industry-standard steering performance in vertical, directional, and horizontal applications for all common hole sizes.
Both systems feature industry-leading Tolteq™ mud pulsers and can also be combined with the NOV symmetric propagation resistivity LWD tool for additional real-time formation evaluation measurements.
The VectorEXAKT RSS is specifically designed for high performance in vertical drilling operations. The system is able to stay on course through continuous steering, and when there is a deviation from vertical, it autonomously steers back on course. You can also run the VectorEXAKT system below a motor for performance drilling applications. Its high rate of penetration, precise verticality control, and robust design set it apart from the competition.
The VectorZIEL RSS is an automatic steering tool for three-dimensional drilling that provides higher ROP, improved cuttings removal, and precise trajectory control. The system offers reliable and precise direction control even in the most demanding drilling
Available for purchase or rental, these tools allow you to provide top-tier directional services in the global marketplace. Within the rental marketplace, both systems have been used to drill more than 230,000 ft in more than 55 wells around the world. Another 40-plus customer-purchased tools have also been used to drill wells globally.

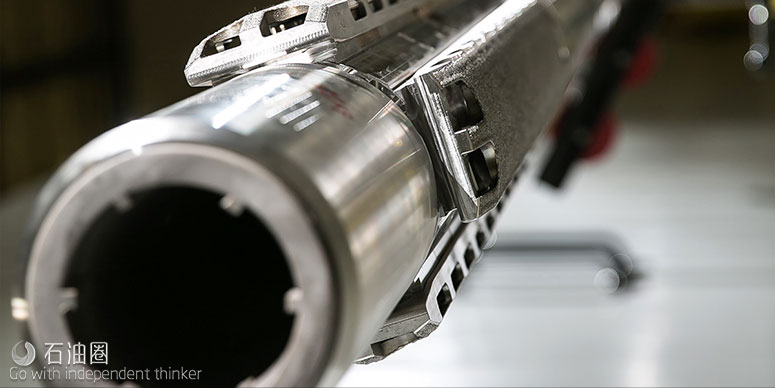

VectorEXAKT Rotary Steerable System
Our VectorEXAKT vertical rotary steerable system (RSS) is designed for high performance in vertical drilling operations. The VectorEXAKT system is set apart by its high rate of penetration, precise verticality control, and robust design.
Description
The VectorEXAKT RSS stays on course through continuous steering—when there is a deviation from vertical, the system will autonomously steer back on course. You can also run the VectorEXAKT system below a motor for performance drilling applications.
Features/Benefits
Integrated MWD system
• Provides real-time feedback while drilling
Near-bit inclination and gamma measurements
• Delivers directional and geological information within 4 ft of the bit
Closed-loop vertical control that requires no intervention from surface
• Steers and maintains a vertical hole autonomously
Can be combined with NOVs MWD and LWD tool portfolio
• Allows the construction of a fully integrated drilling and logging BHA
Short non-rotating housing with four steering ribs
• Provides accurate vertical control even under severe stick-slip conditions

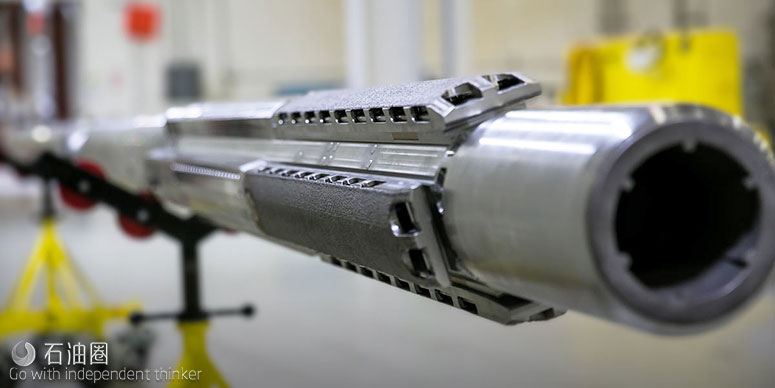

VectorZIEL Rotary Steerable System
The VectorZIEL™ rotary steerable system (RSS) is an automatic steering tool for three-dimensional drilling. Offering higher ROP, improved cuttings removal, and precise trajectory control, the system helps you produce higher quality boreholes at reduced operational costs.
Description
We have developed and refined a premium RSS over the course of the past two decades, culminating in the release of the VectorZIEL system. The VectorZIEL system offers reliable and precise directional control in even the most demanding drilling applications. The system is available for purchase or rent and is supported by NOV’s global maintenance infrastructure, enabling directional drillers to offer high-tier directional drilling services around the world.
Features/Benefits
• Integrated MWD system for real-time feedback while drilling
• Near-bit inclination, azimuth, and gamma measurements
• Closed-loop trajectory control, which requires minimal intervention from surface
• Automated downlinking using surface downlink skid
• Can be combined with our MWD and LWD tool portfolio for an integrated directional drilling and logging BHA
