Standard liner hanger installations matched to wellbore designs

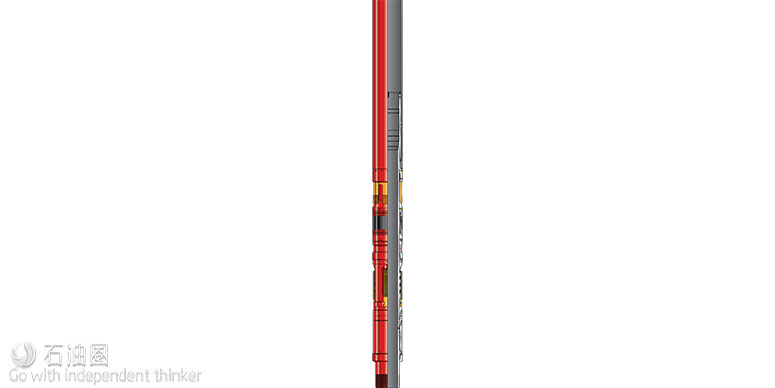

Conventional Liner Hanger Tool
MatchSet™ liner hanger systems help solve well challenges where modular design capability and minimizing risks are key priorities. This suite of conventional liner hanger technologies can result in quantifiable reductions in well construction costs, yet still allow for value in overall performance.
The MatchSet liner hanger system portfolio includes slip type liner hangers such as mechanical or hydraulic-set coupled with a full range of integrated liner-top packers, tieback receptacles, and other complementary components required for a variety of applications.
Regardless of system selection, the goal is always to get the liner to bottom as effectively and efficiently as possible. Our MatchSet liner hanger systems allow for all aspects of a standard liner hanger installation.
Features
Compact design
Pocket-slip arrangement
Uniform slip loading
Heavy load hanging capability
Differentiators
Modular design adjustable to application configuration
Weight-set sealing element
Dynamic service tool prior to cementing
Case Study
OVERVIEW
Sinclair needed a solution for its complex deviated wellbore in the Williston Basin, so the company challenged Halliburton to provide a hanger with a modular system that could be customized to meet Sinclair’s specific needs. With its VersaFlex® expandable liner hanger systems, Halliburton has long been the market leader of these systems – and has a long history of being able to reliably complete wells where others could not. In this case, however, the operator’s preference was to run a conventional type liner hanger. Thus, Halliburton recommended its new MatchSet™ conventional liner hanger system, as it features all of the capabilities that an operator has come to expect from a conventional type liner hanger, including a completely modular design, multiple tieback receptacle options, and an anti-preset feature for performance assurance.
MODULAR DESIGN PROVES BEST MATCH FOR THE JOB
The customer had limited operations in the Williston Basin, and was faced with the complexity of a highly deviated horizontal well with a sidetrack. It needed a hanger with a modular design that could handle long and heavy liners with minimal stress to the parent casing. The MatchSet conventional liner hanger, with an integral liner-top packer, has a unique compact design ideal for deviated or horizontal wells. It provides an effective annular seal between the top of the liner and the parent casing, and the anti-preset feature allows the liner to reach and set at the desired depth.
Halliburton was awarded its first field trial of the MatchSet system on Sinclair’s Ian Quicksilver 19-20-1H well. A hydraulic set/hydraulic release liner hanger with a liner-top packer and a 20-foot (6-meter) polished bore tieback receptacle were selected for Sinclair’s highly deviated horizontal cemented liner completion. Two RapidStart® Initiator sleeves were also used in this customized completion. Once the liner was deployed to total depth and the liner hanger was spaced out for proper setting depth, the hanger was set, utilizing a Halliburton cementing unit. The cement job was pumped, and the wellbore pressure was tested to the customer’s requirements with complete success.
FIRST INSTALLATION OF CONVENTIONAL LINER HANGER EXCEEDS OPERATOR’S EXPECTATIONS
The first MatchSet™ conventional liner hanger was successfully installed in this challenging wellbore, providing the hanging strength and isolation that the operator needed. Reaming operations were carried out to ensure that the wellbore was clear and that the string would track into the correct wellbore. With its MatchSet system, Halliburton delivered a reliable, safe, and cost-effective solution – and with zero nonproductive time (NPT) and zero quality issues. All of the customer’s requirements were met, confirming that this Halliburton entry into the conventional liner hanger market was a complete success.
CHALLENGE
Operator needed a liner hanger solution with a modular design that could be customized to meet the needs of this highly deviated horizontal well with a sidetrack
SOLUTIONS
MatchSet™ conventional liner hanger:
Modular design capable of hanging long and heavy liners with minimal stress to parent casing
Ideal for highly deviated or horizontal wells
RapidStart® Initiator sleeves:
Provides access to the formation, thus eliminating the need for tubing-conveyed perforating during the first stage
RESULTS
First installation of the MatchSet system was a complete success
All customer expectations were met, with hanger setting at the desired depth and wellbore pressure tested to specifications
Completed job with zero NPT and zero quality issues
